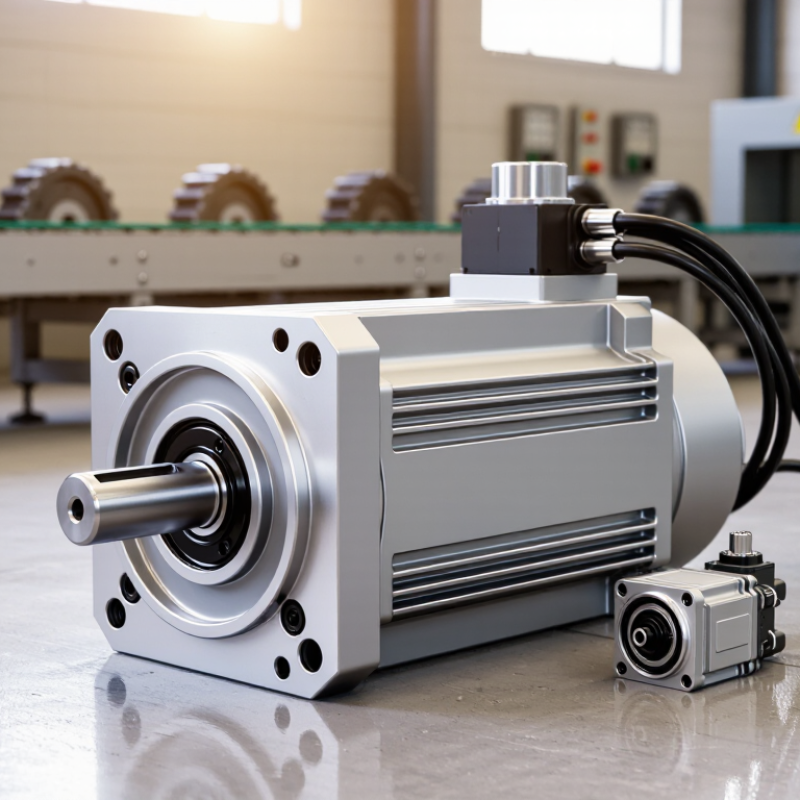

How to Choose the Right Industrial Servo Motor?
Choosing the right industrial servo motor is rarely a matter of selecting the highest torque rating. In real production environments, performance depends on the complete motion system. Load weight, acceleration, positioning accuracy, duty cycle, and gearbox ratios must work together. A motor that looks powerful on paper may overheat beside a conveyor running twelve hours daily.
This guide explains how engineers evaluate an industrial servo before approving a purchase. It considers continuous and peak torque, motor inertia, encoder resolution, voltage, control protocols, and drive compatibility. Installation conditions matter too. Dust, vibration, ambient temperature, and limited cabinet space can change the final decision. A clean factory test does not always predict behavior near a stamping press.
Small details matter.
Practical experience shows that sizing calculations should be checked against actual operating data. Measure the load, observe acceleration profiles, and review fault histories when possible. Manufacturer curves, certifications, technical manuals, and support quality also deserve careful attention. Reliable suppliers should explain thermal limits and replacement requirements clearly, rather than making broad performance claims.
There is no perfect selection formula. A cautious engineer may still discover unexpected resonance after installation. That is why commissioning tests, conservative margins, and documented assumptions remain valuable. This article offers a structured way to compare motor options, reduce avoidable downtime, and match servo technology with the machine’s real demands. The goal is not simply faster motion. It is stable, repeatable, and maintainable performance over years of service.
Define the Load, Motion, and Operating Requirements
How to Choose the Right Industrial Servo Motor?
Define the Load, Motion, and Operating Requirements
Begin with the load, not the motor catalog. Record mass, inertia, friction, gravity, gearbox ratio, and peak torque. Measure the real machine if possible. Estimated friction often looks harmless, then causes overheating during acceleration. A useful sizing sheet should include continuous torque, peak torque, speed, duty cycle, and stopping energy.
Motion requirements shape the motor choice. Define travel distance, acceleration time, positioning accuracy, repeatability, and cycle frequency. A conveyor indexing every two seconds differs greatly from a robotic axis moving smoothly for eight hours. Calculate reflected inertia through the transmission. Keep the load-to-motor inertia ratio within the drive manufacturer’s validated range. I once treated peak speed as the main concern. The missed issue was rapid reversing.
Operating conditions matter just as much. Check ambient temperature, dust, moisture, vibration, installation altitude, cable length, and available voltage. Confirm the thermal duty using the complete motion profile, not only the nameplate rating. The U.S. Department of Energy reports that motor-driven systems consume about 70% of industrial electricity in the United States. Correct sizing therefore affects both performance and energy use. The International Energy Agency also identifies motor systems as major global electricity users. These figures support careful engineering, but they do not replace testing.
Use IEC 61800-5-1 and applicable machine-safety requirements during system review. Verify encoder feedback, braking capacity, fault response, and maintenance access. A controlled trial with measured current and temperature can expose assumptions that calculations miss. Sometimes the “right” motor is smaller. Sometimes the model is wrong.
How to Choose the Right Industrial Servo Motor?
Define the load, motion, and operating requirements before selecting motor torque and speed.
The chart presents representative preliminary design values for common industrial motion profiles.
Continuous torque represents the sustained load, peak torque covers short acceleration or shock events,
and maximum speed defines the required operating range. Final selection should also verify reflected inertia,
acceleration time, duty cycle, thermal limits, braking requirements, and safety margins.
Select the Servo Motor’s Torque, Speed, and Power Ratings
Choosing an industrial servo motor starts with the load, not the catalog. Measure torque during acceleration, steady motion, and deceleration. A conveyor may need modest running torque but a sharp acceleration spike. Use T_required = Jα + T_load + T_friction. Include gearbox losses and a realistic safety margin. Do not treat peak torque as continuous capacity. It is usually a short-term rating. This distinction matters.
Speed selection needs more than maximum rpm. Record normal operating speed, highest commanded speed, and reversal frequency. The motor should deliver rated torque across the working range without overheating. Power follows P = T × ω, so torque and speed must be judged together. A high-speed motor may look powerful on paper yet struggle when the load demands torque at low speed. Check duty cycle, thermal limits, encoder feedback, and drive compatibility.
During commissioning, I once found a correctly sized motor overheating during repeated indexing. The torque calculation was accurate, but the duty cycle was too aggressive. The application also had a larger reflected inertia than expected. Recheck inertia ratios, acceleration time, and ambient temperature. Leave practical margin for wear, friction changes, and occasional overloads. More capacity is not always better; excessive motor size can reduce responsiveness and increase energy use. Test under real production conditions.
Match the Motor with a Compatible Servo Drive and Controller
How to Choose the Right Industrial Servo Motor?
Choosing an industrial servo motor starts with its electrical partner.
Match the motor with a compatible servo drive and controller. The motor’s rated voltage must fit the drive’s output range. Its continuous and peak current ratings must also agree. A mismatch can cause overheating, unstable torque, or nuisance faults. Check the feedback device before ordering. The drive must read its encoder or resolver correctly. Never assume similar connectors mean compatible signals. They may not.
The controller adds another layer.
Confirm command type, pulse frequency, communication protocol, and update rate. A high-speed application needs a drive that processes commands quickly. A packaging axis may require precise motion at short intervals. In a practical test, watch following error during acceleration, stopping, and direction changes. Record motor temperature after repeated cycles. Numbers matter. So does sound. A sharp whine can reveal tuning or mechanical resonance problems.
Allow space for real-world errors.
Cable length, grounding, load inertia, and ambient temperature can change performance. I once treated a catalog torque value as a complete answer. It was not. The machine still needed acceleration torque, braking margin, and duty-cycle review. Size the motor and drive together, then verify the controller’s limits. Test the complete set under the actual load, not only on a workbench. That extra check often exposes assumptions before production does.
Compare Efficiency, Reliability, Maintenance, and Total Ownership Cost
How to Choose the Right Industrial Servo Motor?
Efficiency is not just rated output. Compare the motor, drive, and gearbox as one system. A high-efficiency motor can waste energy when poorly matched. Check continuous torque, peak torque, speed range, and duty cycle. Measure current during acceleration, not only at steady speed. Short tests matter. Experienced commissioning teams also check heat around the motor, because cabinet temperature changes performance.
Reliability depends on heat, vibration, contamination, and changing loads. Review insulation class, bearing life, encoder protection, and allowable shaft loads. In a packaging line, repeated starts may matter more than maximum speed. Ask for test conditions behind every quoted figure. Numbers need context. Maintenance affects lost production, not only labor hours. Choose accessible connectors, clear diagnostic codes, and replaceable feedback components. Inspect cable flexing, unusual noise, and temperature trends. They rarely stay small.
Total ownership cost includes purchase, commissioning, electricity, downtime, spares, and disposal. Build a five-year model using realistic operating hours and energy prices. Include technician travel and training time. A spreadsheet can still mislead when assumptions are optimistic. Test the preferred motor on the real machine, with actual inertia, load changes, and cooling conditions. Test the real machine.
